2SPW Cast Iron Gear Pump
2SPW Cast Iron Gear Pump
Displacement cm³ / rev : Group 2 – from 14 to 31.5
Maximum pressure bar : up to 250
RPM speed : up to 4000
From £200
Call us on
01823 348 900
or email
sales@rotec.net for a quote
3GP Gear Pump
3GP Gear Pumps
Available displacements 1,2 – 4,7 cc/rev. Flange and cover in cast iron. Suited to various applications in the field of mobile and industrial power-to-weight and power/size ratios.
From £130 RRP: £216
Call us on
01823 348 900
or email
sales@rotec.net
01823 348 900
or email
sales@rotec.net

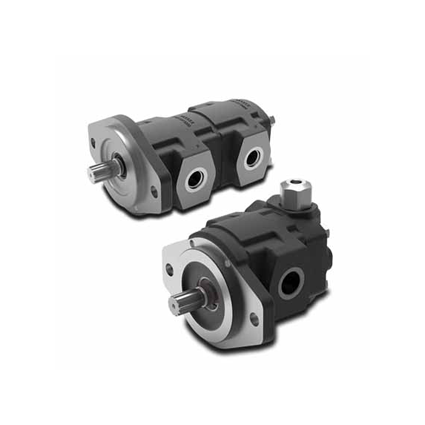

Part of ‘Start’, a new product range of pumps and motors, Galtech gear pumps are suited for many applications both on industrial and mobile sectors. These external gear pumps consist of three groups: 1SP, 2SP (12 teeth) and 3GP (10 teeth) with 32 displacements from 0.89 to 77 cc/rev, and can reach high pressure up to 3000 bar and maximum speeds of rotation of 4000 rpm. They can be easily assembled with complete interchangability with standard flanges or with special ones and can be used with a wide variety of shafts. All pumps are designed for easy combinations into multiple pumps.
2SP Gear Pump
2SP Gear Pumps
Available displacements 0,24 – 1,92 cc/rev. Flange and cover in alluminum and cast iron. Suited to various applications in the field of mobile and industrial power-to-weight and power/size ratios.
From: £65 RRP £108
Call us on
01823 348 900
or email
sales@rotec.net
Part of ‘Start’, a new product range of pumps and motors, Galtech gear pumps are suited for many applications both on industrial and mobile sectors. These external gear pumps consist of three groups: 1SP, 2SP (12 teeth) and 3GP (10 teeth) with 32 displacements from 0.89 to 77 cc/rev, and can reach high pressure up to 3000 bar and maximum speeds of rotation of 4000 rpm. They can be easily assembled with complete interchangability with standard flanges or with special ones and can be used with a wide variety of shafts. All pumps are designed for easy combinations into multiple pumps.
1SP Gear Pump
1SP Gear Pumps
Available displacements 0,05 – 0,60 cc/rev. Flange and cover in alluminum. Suited to various applications in the field of mobile and industrial power-to-weight and power/size ratios.
From: £55 RRP £92
Call us on
01823 348 900
or email
sales@rotec.net
Part of ‘Start’, a new product range of pumps and motors, Galtech gear pumps are suited for many applications both on industrial and mobile sectors. These external gear pumps consist of three groups: 1SP, 2SP (12 teeth) and 3GP (10 teeth) with 32 displacements from 0.89 to 77 cc/rev, and can reach high pressure up to 3000 bar and maximum speeds of rotation of 4000 rpm. They can be easily assembled with complete interchangability with standard flanges or with special ones and can be used with a wide variety of shafts. All pumps are designed for easy combinations into multiple pumps.
3GM Gear Motor
3GM Gear Motors
Available displacements 1,2 – 4,7 cc/rev. Flange and cover in cast iron. Suited to various applications in the field of mobile and industrial power-to-weight and power/size ratios.
From: £130 RRP £217
Call us on
01823 348 900
or email
sales@rotec.net
An external gear motor is suggested for hydraulic applications where a good torque output is required at the shaft. Simple construction (if compared with more complex motors such as orbital or piston ones), great versatility, durability, and endurance allow to reduce maintenance costs and to lower the purchasing ones. Galtech motors of the Start range is composed by three groups: 1SM, 2SM, and 3GM with 20 displacements suitable for different applications both in industrial and mobile sectors with good power/weight and power/size ratios. Both unidirectional and bidirectional, Galtech motors can be easily assembled with full interchangeability with standard flanges or with special ones and with a wide range of shafts.
