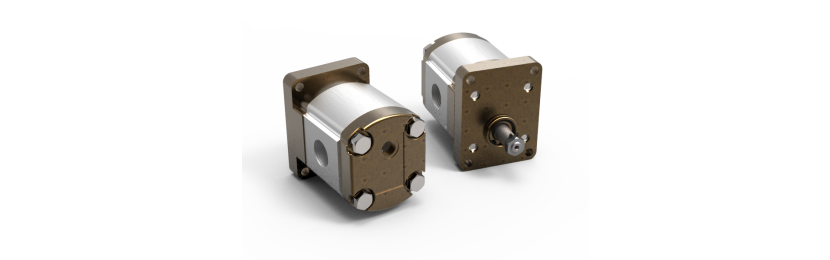

2SM Gear Motors

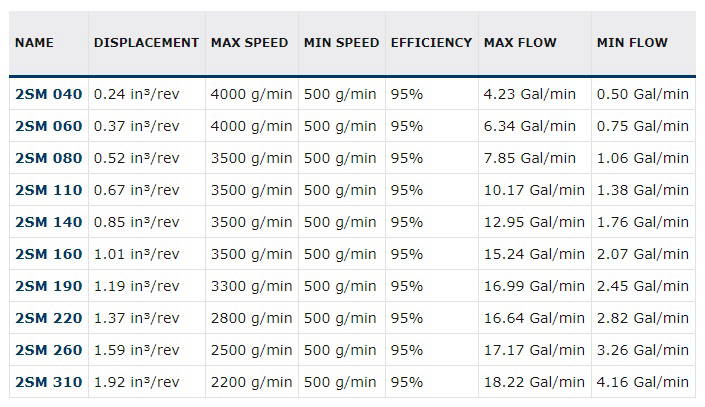

Available displacements 0,24 – 1,92 cc/rev. Flange and cover in alluminum and cast iron. Suited to various applications in the field of mobile and industrial power-to-weight and power/size ratios.

From: £80      RRP £133

Call us on
01823 348 900
or email
sales@rotec.net

An external gear motor is suggested for hydraulic applications where a good torque output is required at the shaft. Simple construction (if compared with more complex motors such as orbital or piston ones), great versatility, durability, and endurance allow to reduce maintenance costs and to lower the purchasing ones. Galtech motors of the Start range is composed by three groups: 1SM, 2SM, and 3GM with 20 displacements suitable for different applications both in industrial and mobile sectors with good power/weight and power/size ratios. Both unidirectional and bidirectional, Galtech motors can be easily assembled with full interchangeability with standard flanges or with special ones and with a wide range of shafts.
